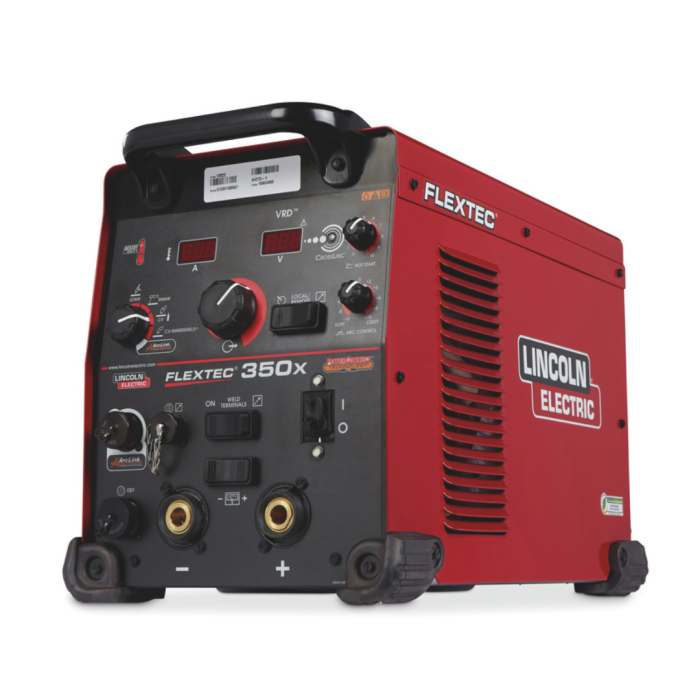

Lincoln Flextec® 350X PowerConnect® (Tweco) – K4273-1



Whether in a shop or in the field, the Flextec 350X welder is built to perform. Equipped with CrossLinc® technology, the Flextec 350X welder can be controlled from hundreds of feet away without expensive and inconvenient control cables. Desert Duty® and IP23 rated, it can withstand harsh outdoor conditions and outperform other welders in its class.

In the field, the Flextec 350X PowerConnect is a rugged multi-process power source, this model stays reliable and offers much more than other inverter-based welders in its class.

In the shop, the Flextec 350X PowerConnect model is built to work with all 42V feeders for your factory applications. It is also compatible with Arclink® digital feeders to provide synergic pulsed MIG modes and memories for quick setup and seamless connectivity.

The Flextec 350X PowerConnect model also adds the ability to weld with any input voltage between 200 and 600 volts and adds basic pulsed MIG output as a standard feature.

Features

• PowerConnect supports any incoming voltage 200-600V, 1 3-phase, 50 60 Hz.
• CrossLinc Technology compatible
• Supports pulsed MIG with compatible ArcLink wire feeder such as Power Feed feeders.

• Typical Applications

  • General Fabrication
  • Pulsed MIG
  • Where portability is needed
  • Varying input voltages

  • Download Product Info

    Flexible

    • Compatible with across-the-arc, analog, digital or CrossLinc™ feeders
    • Premium multi-process arc characteristics works with all DC wire, stick and TIG processes
    • Lightweight and portable

    •  Product Highlights

      • Desert Duty Rated™ for extreme temperatures up to 55°C
      • VRD® Voltage Reduction Device reduces Open Circuit Voltage for added safety
      • Offered in 4 and 6 pack rack configurations
      • Wide 5-425 amperage range
      • Capable of Arc Gouging with 3 16 in. (4.8 mm) carbons

      • Input Power		200-600V 1Phase 3Phase
        Rated Output		350A 34V 60% 300A 32V 100%
        Output Range		5-425A
        Solid Wire Size Range		.023-1 16 in. (.6-1.6 mm.)
        Cored Wire Size Range		.030-5 64 in. (.8-2 mm.)
        Wire Feed Speed Range		50-800 ipm
        DIMENSIONS (H X W X D)		17 x 13 x 24 in.
        NET WEIGHT		84 lb



        What s Included?

        • 8.5ft 4 conductor 8 AWG input power cable
        • Flextec® 350X Powerconnect
