FEIN 18v Cordless 1-3 8 Mag Drill AJMU 137 PMQW AS



Ampshare Cordless Universal magnetic base drill up to 1-3 8 35 mm



Single-speed cordless magnetic drill with universal features. Forward reverse, double dovetail for extended stroke range and permanent magnet and maximum functionality for mobile work on the construction site.

Features:

• 725 [221] ft[m] cutting capacity (in 22 [0.8] gauge [mm] sheet metal) with one battery charge (4 Ah).
• Outstanding ergonomics and compact design for optimal mobility of the shear.
• Indexible cutting blades with four sides for clean and burr-free cutting with low operating costs.
• Good curve precision with low sheet-metal distortion.
• Perfect for trimming and cutting.
• Unrestricted view of the cutting line.
• Proven MultiMaster motor with outstanding power and durability.
• Compatible with AMPShare Bosch Professional 18 V batteries from 2008 on.
• Maximum cutting speed with AMPShare 18V batteries: COOLPACK 2.0 technology ensures a longer battery service life in comparison to batteries without COOLPACK technology. It makes longer operation times possible. ECP protects batteries against overloading, overheating and deep discharge.
• Perfectly equipped for any job with FEIN s L-BOXX system.

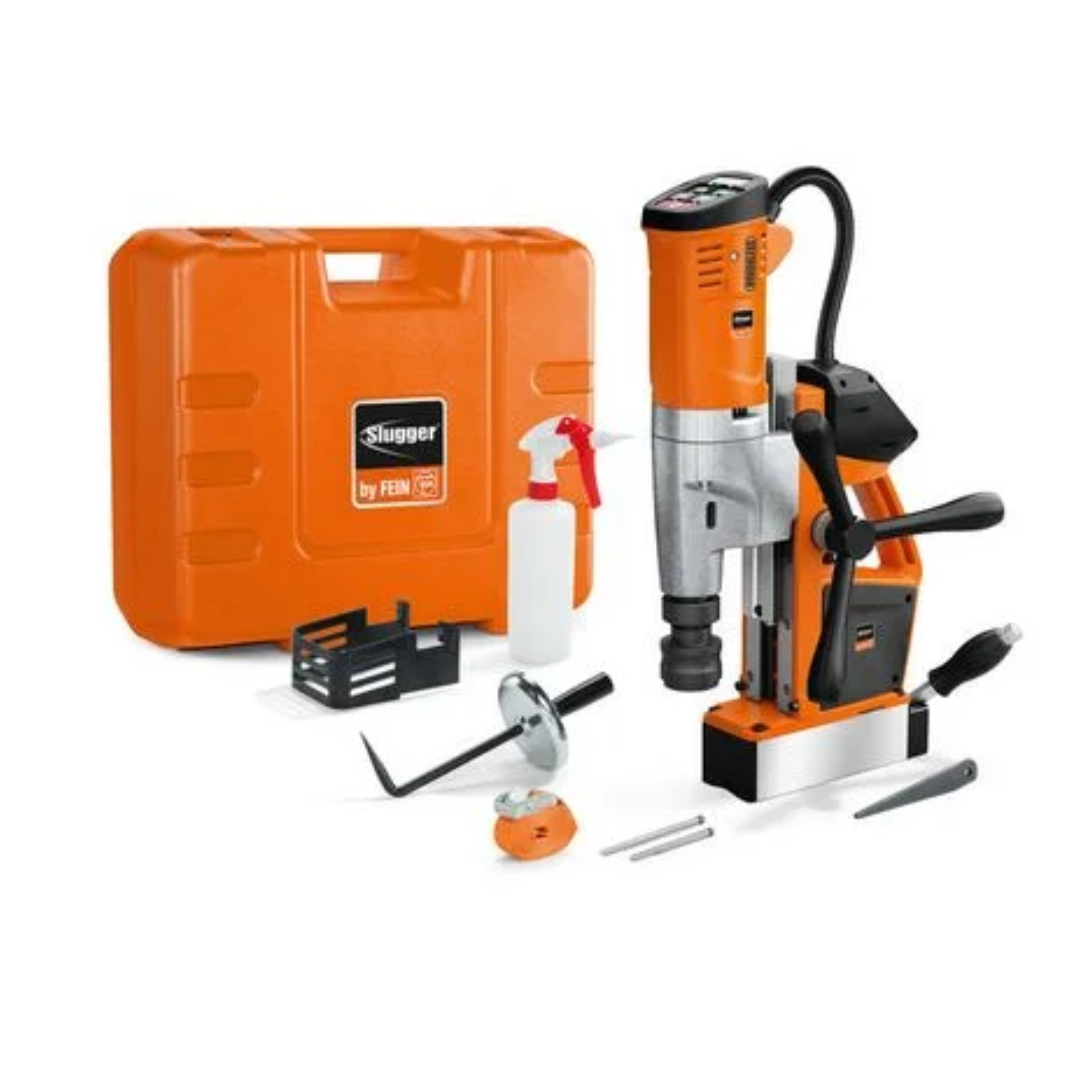

• Tool Only Option (71700562090) Includes:

  • 1 cordless magnetic core drill
  • 1 coolant pump
  • 1 centering pin dia. 1 4 x 3-9 16 [6.35 x 90] in[mm]
  • 1 centering pin dia. 1 4 x 3-1 4 [6.35 x 82] in[mm]
  • 1 centering pin dia. 1 4 x 4 [6.35 x 100] in[mm]
  • 1 safety strap
  • 1 chip hook
  • 1 chip guard
  • 1 drift
  • 1 tool case

  • Complete Set with 2x 8Ah 18 V AMPShare and 1x Rapid Charger (71700563090) Includes:

    • Everything from the above set plus:
    • 2x 8Ah 18 V AMPShare Batteries
    • 1x Rapid Charger

    • Specifications:

      Battery voltage		18 V
      Battery compatibility		Li-ion CORE 18 V Li-ions
      Battery interface		18 V AMPShare
      Motor		Brushless
      Full load speed		130 – 520 rpm
      Tool Mount		MT 2
      Carbide cutter max. dia.		3 64 [1.2] in[mm]
      HSS cutter max. dia.		3 64 [1] in[mm]
      Cutter max. drilling depth		3 32 [2] in[mm]
      Twist drill max. dia.		1 2 [15] in[mm]
      Tapping		3.17 [1.44] lbs[kg]
      Max. countersinking dia.		1-1 4 [31] in[mm]
      Reaming max. dia.		3 4 [18] in[mm]
      Cutter holder		3 4 straight shank
      Stroke		5-5 16 [135] in[mm]
      Magnetic holding force		2023 [9,000] lbs[N]
      Magnetic base dimensions		7-11 16 [195] x 2-3 4 [70] in[mm]
      Weight without battery		26.90 [12.20] lbs[kg]



      Full Product Data Sheet

      Options	Tool Only – 71700562090, Complete Kit with 2x 8ah 18v Batteries – 71700563090
